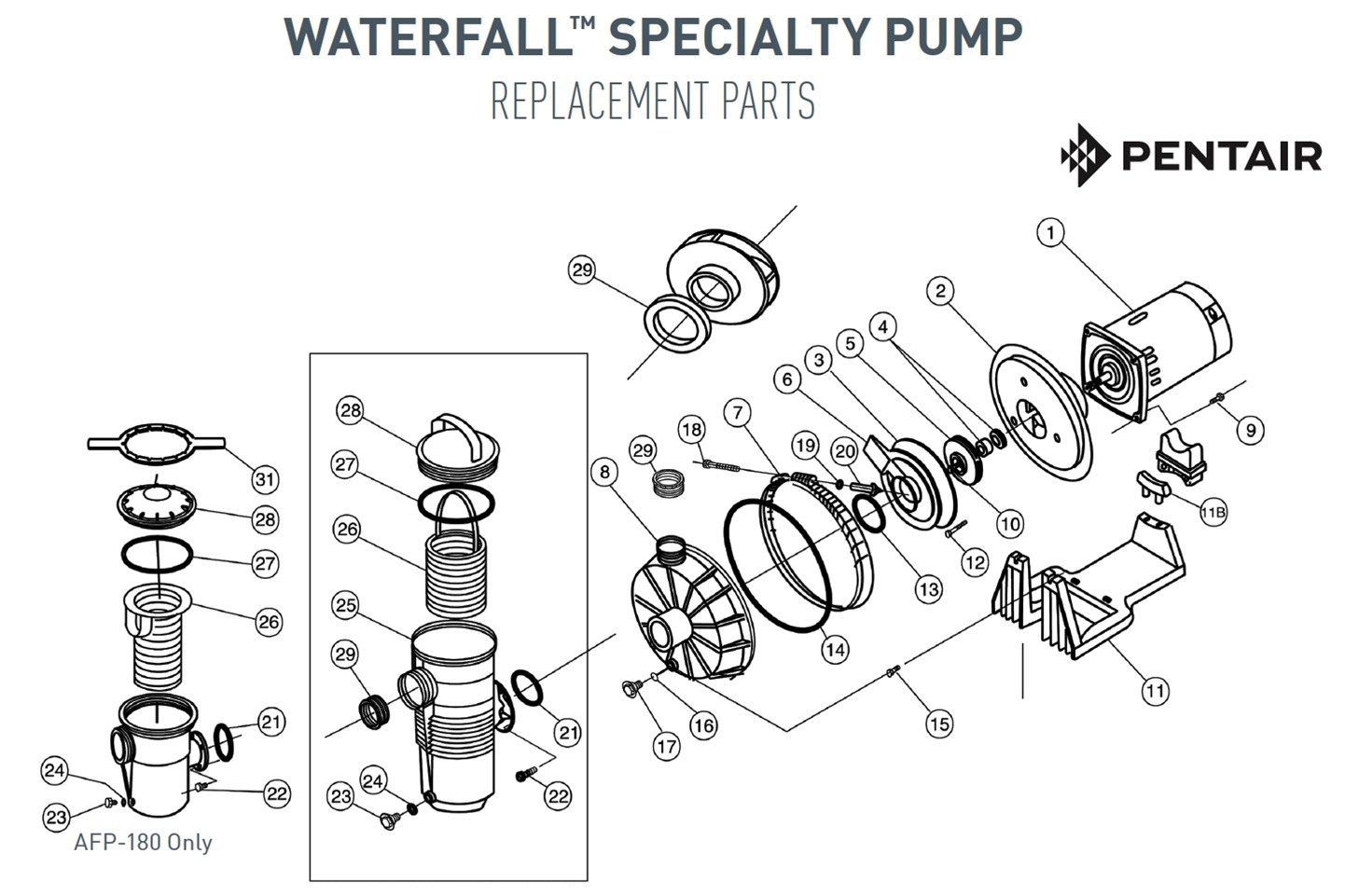

Waterfall Specialty Pump Parts

Details:
Pentair Pool Products Part Number 355218S
Used On Pentair Waterfall Specialty Pumps

• AF-75 & 120, AFP-75 & 120

Details:
Pentair Pool Products Part Number 355222S
Used On Pentair Waterfall Specialty Pumps

• AF-180, AFP-150 & 180

Details:
Pentair Pool Products Part Number 355004
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

Details:
Pentair Pool Products Part Number 355317
3/4F thru 3F, 1A thru 2-1/2A
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

• AF-75, AFP-75

Details:
Pentair Pool Products Part Number 355495
Used On Pentair Challenger High Flow Pumps

• 5F

Used On Pentair Waterfall Specialty Pumps

• AF-120 & 180, AFP-120, 150 & 180

Details:
Pentair Pool Products Part Number 354545S
5/8 inch
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Superflo VS Variable Speed Pumps
Used On Pentair Superflo® Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Sta-Rite Supermax VS Pumps

• before 06/17/19


Used On Sta-Rite Supermax Pumps
Used On Sta-Rite Pentair Optiflo Pumps
Used On Pentair Sta-Rite Dynamo Pumps
Used On Pentair Waterfall Specialty Pumps
Used On Pentair SuperFlo VS VST Pumps before 11-2020
Sta-Rite SuperMax VS Pumps before 11-2020

Details:
Pentair Pool Products Part Number 355544
Used On Pentair Challenger High Pressure Pumps

• 3F

Used On Pentair Waterfall Specialty Pumps

• AF-75, AFP-75

Details:
Pentair Pool Products Part Number 355068
Used On Pentair Challenger High Flow Pumps

• 3F 50 Hz/5F 60 Hz

Used On Pentair Waterfall Specialty Pumps

• AF-120, AFP-120

Details:
Pentair Pool Products Part Number 355221
Used On Pentair Waterfall Specialty Pumps

• AF-180, AFP-150 & 180

Details:
Pentair Pool Products Part Number 355545
3F, 2.5A, 2F 2
Used On Pentair Challenger High Pressure Pumps

• For 2F, 2-1/2A pumps built prior to 10-1-92. Must replace w/ both diffuser 355545 & impeller 355604.

Used On Pentair Waterfall Specialty Pumps

• AF-75, AFP-75

Details:
Pentair Pool Products Part Number 355069
Used On Pentair Challenger High Flow Pumps

• 3F, 50 Hz/5F 60 Hz

Used On Pentair Waterfall Specialty Pumps

• AF-120, AFP-120

Details:
Pentair Pool Products Part Number 355140
Used On Pentair Waterfall Specialty Pumps

• AF-180, AFP-150 & 180

Details:
Pentair Pool Products Part Number 355320
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

Details:
Pentair Pool Products Part Number 355302
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

Details:
Sta-Rite Pool Products Part Number U3074SS
Formerly Pentair Pool Products Part Number 354290
3/8-16 x 1" Hex Head SS
Used On Sta-Rite Intellipro 2 VST Variable Speed Pumps
Used On Sta-Rite Intellipro Variable Speed Pumps
Used On Sta-Rite Max-E-Pro Series Pumps
Used On Sta-Rite Max-E-Glas | Dura-Glas FULL Rated Pumps
Used On Sta-Rite Max-E-Glas | Dura-Glas UP-Rated Pumps
Used On Sta-Rite Max-E-Glas II | Dura-Glas II UP-Rated Pumps
Used On Sta-Rite Max-E-Glas II | Dura-Glas II FULL Rated Pumps
Used On Sta-Rite Dyna-Glas | Dyna-Max Pumps
Used On Sta-Rite Dyna-Pro | Dyna-Pro E Pumps
Used On Sta-Rite Dyna-Wave Series Pumps
Used On Sta-Rite Dyna-Jet TPE Series Pumps
Used On Sta-Rite Top Mount 1-1/2 Inch Multiport Valves
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Superflo VS Variable Speed Pumps
Used On Pentair Superflo® Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Sta-Rite Supermax VS Pumps
Used On Sta-Rite Supermax Pumps
Used On Pentair EQ Series Commercial Plastic Pumps

• EQ300, EQ500, EQ750…3PH

Used On Pentair Waterfall Specialty Pumps
Used On Pentair SuperFlo VS / VST Pumps after 10-2020
Sta-Rite SuperMax VS Pumps after 10-2020
Used On Pentair SuperFlo VS VST Pumps before 11-2020
Sta-Rite SuperMax VS Pumps before 11-2020
Used On Sta-Rite Intellipro® Variable Speed Pumps before 2019
Used On Sta-Rite Max-E-Pro Series DOE Pumps

Details:
Pentair Pool Products Part Number 355389
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Superflo VS Variable Speed Pumps
Used On Pentair Superflo® Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Sta-Rite Supermax VS Pumps
Used On Sta-Rite Supermax Pumps
Used On Pentair Waterfall Specialty Pumps
Used On Pentair SuperFlo VS / VST Pumps after 10-2020
Sta-Rite SuperMax VS Pumps after 10-2020
Used On Pentair SuperFlo VS VST Pumps before 11-2020
Sta-Rite SuperMax VS Pumps before 11-2020

Details:
Pentair Pool Products Part Number 355305
Includes dual radius motor support.
Used On Pentair Challenger High Flow Pumps

• Pump base (item 11) includes dual radius motor support adapter (item 11B) which fits both 5-5/8 in. & 6-1/2 in. dia. motors.

Used On Pentair Challenger High Pressure Pumps

• Pump base, (item 11) includes dual radius motor support adapter (item 11B) which fits both 5-5/8 in. & 6-1/2 in. dia. motors.

Used On Pentair Waterfall Specialty Pumps

Details:
Pentair Pool Products Part Number 355385
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Pinnacle High Flow Pumps

• This item, motor support P/N 355385 is required on 5/8 in. diameter motors.

Used On Pentair Waterfall Specialty Pumps

• Item 11A, motor support is a replacement part that fits only older style pump bases with rectangular opening.

Details:
Pentair Pool Products Part Number 355334
8-32 x 1 inch
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Superflo VS Variable Speed Pumps
Used On Pentair Superflo® Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Sta-Rite Supermax VS Pumps
Used On Sta-Rite Supermax Pumps
Used On Pentair Waterfall Specialty Pumps

• AF-75 & 120, AFP-75 & 120

Used On Pentair SuperFlo VS / VST Pumps after 10-2020
Sta-Rite SuperMax VS Pumps after 10-2020
Used On Pentair SuperFlo VS VST Pumps before 11-2020
Sta-Rite SuperMax VS Pumps before 11-2020

Details:
Pentair Pool Products Part Number 355141
8-32 x 1-1/2 inch
Used On Pentair Waterfall Specialty Pumps

• AF-180, AFP-150 & 180

Details:
Pentair Pool Products Part Number 355331
Used On Pentair Challenger High Flow Pumps

• 5 HP only

Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

Details:
Pentair Pool Products Part Number 355329
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

Details:
Pentair Pool Products Part Number 355335
5/16, 18 x 1/2 in. SS hex
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

• AF models only

Details:
Pentair Pool Products Part Number 175025
Fits clamp with captured T-bolt only
 Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps
Used On Utilitech, Water-Ace, Meyers Pool Pumps

Details:
Pentair Pool Products Part Number 355330
1/8 in. x 2-3/8 in. i.d.
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps
Used On Pentair PacFab Tagelus Sand Filters

• TA100 TA100D

Used On Pentair PacFab Admiral Skimmers

Details:
Pentair Pool Products Part Number 354265
5/16, 18 hex washer head
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps
Used On Pentair HydroPumps

Details:
Pentair Pool Products Part Number 357161
1/4" NPT
Used On Pentair Whisperflo® Pumps
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Sta-Rite IntelliproXF Variable Speed Pumps after August 2015
Used On Sta-Rite IntelliproXF Variable Speed Pumps before August 2015
Used On Sta-Rite Intellipro VS+SVRS Pumps
Used On Sta-Rite Max-E-ProXF Pumps
Used On Sta-Rite Supermax VS Pumps
Used On Sta-Rite Supermax Pumps
Used On Sta-Rite Pentair Optiflo Pumps
Used On Pentair EQ Series Commercial Plastic Pumps
Used On Pentair Waterfall Specialty Pumps
Used On Sta-Rite Intellipro VS+SVRS Pumps After June 2016
Used On Pentair PacFab Tagelus Sand Filters
Used On Pentair PacFab Triton II Sand Filters

• Used on filters manufactured after 3-83.

Used On Pentair SuperFlo VS / VST Pumps after 10-2020
Sta-Rite SuperMax VS Pumps after 10-2020
Used On Pentair SuperFlo VS VST Pumps before 11-2020
Sta-Rite SuperMax VS Pumps before 11-2020
Used On Max-E-Pro XF Pumps
Used On Sta-Rite SuperMax DOE Pumps
Used On Sta-Rite Max-E-ProXF VS Pumps

Details:
Pentair Pool Parts Part Number: 8023304
Used On Pentair Intelliflo 3 Variable Speed and Flow Pumps
Used On Sta-Rite Intellipro 3 Variable Speed and Flow Pumps

Details:
Pentair Pool Products Part Number 355300
Includes Drain Plug and O-Ring
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

• AFP-75, AFP-120 & 150

Details:
Pentair Pool Products Part Number 355318Z

• Top Ring Diameter: 5-15/16"
• Bottom Diameter: 4-5/8"
• Height: 6-7/8"

Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Waterfall Specialty Pumps

• AFP-75 & 120

Details:
Pentair Pool Products Part Number 355441

• Top Width: 5-3/8"
• Bottom Width: 4-5/8"
• Height: 6-1/4"

Used On Pentair Challenger High Flow Pumps

• 3F Only

Used On Pentair Challenger High Pressure Pumps

• 3F Only

Used On Pentair Waterfall Specialty Pumps

• AFP-150

Details:
Pentair Pool Products Part Number 355901

• Top Width: 8-1/4"
• Bottom Width: 5-3/4"
• Height: 11-1/4"

Used On Pentair Challenger High Flow Pumps

• 5F Only

Used On Pentair Waterfall Specialty Pumps

• AFP-180

Details:
Pentair Pool Products Part Number 350013
Used On Pentair Pentair Intelliflo® VF Pumps
Used On Pentair Intelliflo® 2 VST Variable Speed Pumps
Used On Pentair Intelliflo® Variable Speed & VS+SVRS Pumps
Used On Pentair Intelliflo® i1 Variable Speed Pumps
Used On Pentair Whisperflo® Pumps

• Used on pumps manufactured after 11-98.

Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Sta-Rite Intellipro VS+SVRS Pumps
Used On Pentair EQ Series Commercial Plastic Pumps
Used On Pentair Waterfall Specialty Pumps

• AFP-75, AFP-120 & 150

Used On Pentair Intelliflo i1 and i2 Variable Speed Pumps After April 2016
Used On Pentair Intelliflo VS+SVRS Pumps After June 2016
Used On Sta-Rite Intellipro VS+SVRS Pumps After June 2016
Used On Pentair Intelliflo VSF | INTELLIFLO VS | Intelliflo 2 VST Variable Speed Pumps after 2018
Used On Pentair Intelliflo Variable Speed Pumps - Before 2019
Pentair Intelliflo VS+SVRS Pumps - Before June 2016
Used On Pentair Pentair Whisperflo VST Pumps

Details:
Pentair Pool Products Part Number 152509Z
8-1/2 inch
Used On Pentair Challenger High Flow Pumps

• 5 HP only

Used On Pentair Waterfall Specialty Pumps

• AFP-180

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

Details:
Pentair Pool Products Part Number 355301
Used On Pentair Challenger High Flow Pumps
Used On Pentair Challenger High Pressure Pumps
Used On Pentair Pinnacle High Flow Pumps
Used On Pentair Waterfall Specialty Pumps

• AFP-75, AFP-120 & 150

Details:
Pentair Pool Products Part Number 355142
Used On Pentair Waterfall Specialty Pumps

• AF-180, AFP-150 & 180

Details:
Pentair Pool Products Part Number 154527
8.5 Inch
Used On Pentair Challenger High Flow Pumps
Used On Pentair Waterfall Specialty Pumps

• AFP-180

Used On Pentair Triton TR100C and TR140C Commercial Sand Filters
Used On Pentair Triton TR100C-3 | TR140C-3 Sand Filters

• Used on filters manufactured before 3-97.

Details:
Pentair Pool Products Part Number 355914
Used On Pentair Challenger High Flow Pumps

• 5F Only

Used On Pentair Waterfall Specialty Pumps

• AFP-75, AFP-120 & 150
