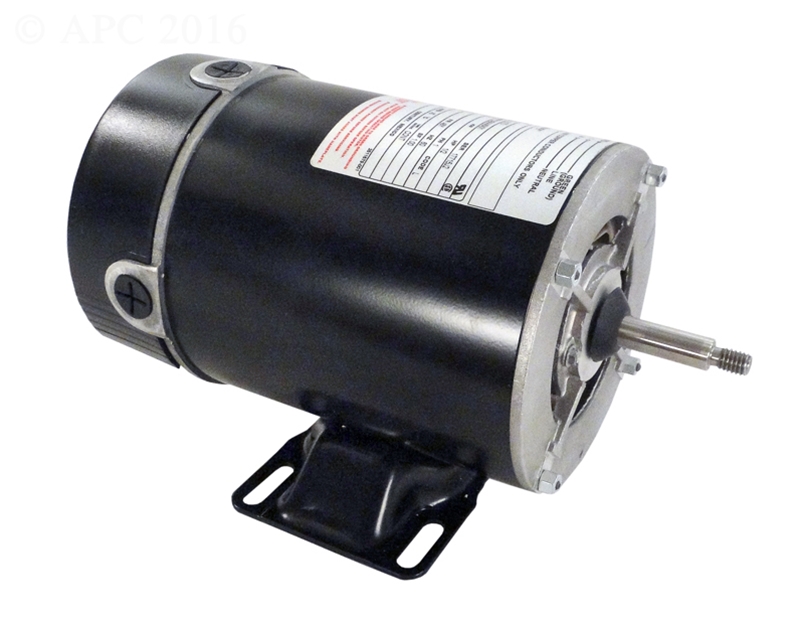

Above Ground Swimming Pool and Spa Pump Motors

Above Ground Swimming Pool & Spa Pump Motors

Jetted Tub/Spa/Above Ground Swimming Pool Pump Motors – Split Phase, Capacitor
Start & PSC Single-phase – Dripproof – Ball Bearing – Rigid Base & No Base – 3450 and
3450/1725 RPM – 1/2 thru 4 HP SP

Features:
  • 12 & 3 O’clock Conduit Entries
  • 40˚C Ambient
  • Class B Insulation
  • Rotation: CCW Pump End
  • Through Bolt Mount
  • 48/56 Base Mounting
  • 3-1/2” Shaft Height
  • Four Thru Bolts on a 5.146 Bolt Circle
  • Optional Two-speed Toggle Switch Assembly Lo/Off/Hi #18313301
BN23V1 | 1/2HP Above Ground Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN23V1
1⁄2 Horse Power
3450 RPM's
115 Volts
1 Service Factor
0.5 THP
7.2 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
13719, 158271, 159965, 164245, 164906, 164920, 164954, 168477, 173316, 176506, 177612, 177706, 177707, 177892, 177953, 182268, 182716, 184337, 184393, 186882, 1500Z-1-EC, 1500Z-1-ESC, 1D160, 317P134, 317P237, 317P290, 317P387, 317P399, 317P408, 317P477, 35-6470, AGL50FL1, B023, BN023, BN23, BN23SS, CBT2052, H638, H665, MTG-H638, S48A82A04, S48AA46A01, S48B86B95, S48J2A21, S48J2A22, S48J2A22A1, S48J2A22E1, S48J2A4, S48J2A4A1, S48J2A4A3, S48J2A4A7, S48J2A4A8, S48J2A4HF, S48K2A45A1, SP1500Z1E, SP1500Z1EW, SP1500Z1T, SP1500Z1TBK, SP1540Z1EW
** Not Available to ship to California **
View More Details
Price: $175.84
BN24V1 | 3/4HP Above Ground Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN24V1
3⁄4 Horse Power
3450 RPM's
115 Volts
1 Service Factor
0.75 THP
9.8 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
18889, 158272, 158273, 159793, 159842, 159849, 159862, 159966, 164159, 164246, 164247, 164921, 164952, 165965, 168363, 168364, 168478, 173118, 173135, 176166, 176507, 177613, 177719, 177733, 177746, 177893, 177954, 177960, 182267, 182519, 182717, 182832, 184394, 186111, 186127, 186533, 186883, 187610, 193261, 193389, 193425, 193769, 196034, 90100625, 90101197, 177954PJ, 1D158, 1D161, 310P144, 310P170, 317P125, 317P236, 317P291, 317P357, 317P394, 317P397, 317P409, 317P478, 35-6471, AGL75FL1, B024, B028, BN24, BN24SS, C1453, CBT2072, H639, H666, H909, MTG-H639, S48AA10A01, S48B73A03, S48B83A15, S48B83Z01, S48B88B95, S48E48A04, S48J2A14A1, S48J2A18A1, S48J2A5A4, S48K2A1, S48K2A12, S48K2A2, S48K2A2A1, S48K2A2A2, S48K2A3, S48K2A30, S48K2A30A1, S48K2A30A2, S48K2A38A1, S48K2A4, S48K2A45, S48K2A45A1, S48K2A45A2, S48K2A45E1, S48K2A4A2, S48K2A5, S48K2A5A2, S48K2A5A3, S48K2A5A4, S48K2A5A7, S48K2A7, S48K2A8, SP1510Z1E, SP1510Z1ET, SP1510Z1T, SP1510Z1TBK, SPL75FL1, SPX1510Z1E
** Not Available to ship to California **
View More Details
Price: $185.84
BN25V1 | 1HP Above Ground Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN25V1
1 Horse Power
3450 RPM's
115 Volts
1 Service Factor
1 THP
12 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
16436, 159862, 159964, 164950, 165846, 168507, 168970, 173315, 176505, 177386, 177614, 177748, 177760, 177769, 177894, 177955, 177961, 178872, 182520, 182718, 182746, 182833, 184307, 184395, 184878, 186884, 187809, 187810, 187872, 187873, 190613, 193262, 193390, 193868, 196035, 356495, 90106543, 1510Z-1-EC, 1510Z-1-EKC, 1510Z-1-ESC, 1510Z-1-EXSC, 1510Z-1-XEC, 177760PJ, 1D157, 1D162, 317P239, 317P292, 317P358, 317P410, 317P420, 317P479, 35-6472, AGL10FL1, B025, B029, BN025, BN25, BN25, BN25SS, BN25V1, BO25, C1454, CBT2102, H640, H667, H910, M-181AG, M-191, MTG-H640, S48A46A07, S48A84A04, S48AA11A01, S48AA12A01, S48B74A03, S48B89B95, S48C51Z01, S48L2A16, S48L2A26, S48L2A26A1, S48L2A26A2, S48L2A28, S48L2A29, S48L2A38, S48L2A41, S48L2A41A1, S48L2A41A2, S48L2A6, S48L2A6A1, S48L2A6A2, S48L2A6A3, S48L2A6A4, S48L2A6A7, S48L2A6A8, S48L2A8, S48L2A8A2, S48L2A8A3, S48L2A8A4, S48L2A9, SP1510Z1TXE, SP1510Z1XEW, SP1510Z1XT, SP1510Z1XTBK, SP-1515-Z1B, SPL10FL1, SPX1510Z1XE
** Not Available to ship to California **
View More Details
Price: $203.98
BN35V1 | 1-1/2HP Above Ground Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN35V1
1-1⁄2 Horse Power
3450 RPM's
230/115 Volts
1 Service Factor
1.5 THP
8.0/16.0 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
17448, 165085, 168664, 173942, 176433, 176816, 177193, 177236, 177601, 177615, 177777, 177895, 177931, 181546, 182272, 182719, 182721, 182722, 182915, 186885, 186886, 187970, 193391, 193554, 193742, 193771, 193802, 193811, 193812, 17789500, 90101288, 1515Z-1-EBKC, 1515Z-1-EC, 177777PJ, 1D154, 5U163, AGD15FL1, B035, BN035, BN35, BN35SS, BV35, BV35S, BV35SS, C1276, C1455, C1901, C48AA72A01, C48M219A1, C48M2A10, C48M2A19, C48M2A19A1, C48M2A1A9, S48A47A07, S48A53A03, S48A85A04, S48M2A1, S48M2A16, S48M2A16A8, S48M2A1A1, S48M2A1A7, S48M2A1A8, S48M2A8A1, SP1515Z1E, SP1515Z1E3, SP1515Z1EW, SPD15FL1, TBT1152, TBT1152D
** Not Available to ship to California **
View More Details
Price: $237.51
BN40SS | 2HP Above Ground Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN40SS
2 Horse Power
3450 RPM's
230/115 Volts
1 Service Factor
2 THP
10.0/20.0 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
17527, 181069, 181484, 181579, 182276, 182688, 182798, 182924, 186062, 186095, 186097, 186887, 193864, 193865, 5U164, BN40, C1456, SPH20FL1, SPH20FLC
** Not Available to ship to California **
View More Details
Price: $285.69
BN36 | 3/4HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN36
3⁄4~.10 Horse Power
3450/1725 RPM's
115 Volts
1 Service Factor
0.75 THP
8.8/2.6 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
12562, 158923, 159860, 159963, 164007, 164076, 164085, 164248, 164249, 164312, 164460, 164613, 164798, 164854, 164905, 164922, 165361, 165377, 173415, 177388, 177781, 181326, 182273, 182712, 182713, 182834, 182990, 186100, 196295, 4405120408, 1D159, 317P279, 317P289, 317P293, 317P380, 35-6481, 35-6485, 5U145, AGL75FL2, B024, B028, B036, BN024, BN24, BO22, C1277, C1278, C1322, C1902, C48A02A24, C48K2A15, CBS2072, H639, M-181, M-191AG, M-197AG, MTG-H639, S48A12A24, S48J2A14A2, S48K2A10, S48K2A10A1, S48K2A10A2, S48K2A10A3, S48K2A10A4, S48K2A15, S48K2A15A1, S48K2A15A2, S48K2A15A3, S48K2A21, S48K2A2A4, S48K2A2A7, S48K2A2A8, S48K2A3, S48K2A30, S48K2A30A1, S48K2A30A2, S48K2A31, S48K2A32, S48K2A32A1, S48K2A32A3, S48K2A38A1, S48K2A42, S48K2A43, S48K2A44, S48K2A44A1, S48K2A44A2, S48K2A45, S48K2A45A1, S48K2A45A2, S48K2A45E1, S48K2A5, S48K2A5A2, S48K2A5A3, S48K2A5A4, S88-554, SP1510Z2E, SP1510Z2EK5, SPL75FL2
** Not Available to ship to California **
View More Details
Price: $237.51
BN37V1 | 1HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN37V1
1~.12 Horse Power
3450/1725 RPM's
115 Volts
1 Service Factor
1 THP
11.0/2.9 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
15669, 15698, 15699, 15700, 15707, 159906, 164003, 164077, 164250, 164266, 164461, 164679, 164858, 164923, 165362, 165378, 165527, 165789, 168768, 168971, 173392, 173416, 173632, 177192, 177782, 177784, 181327, 181961, 182714, 182745, 182835, 184165, 186093, 186265, 186266, 193743, 80104993, 901014993, 4405100412, 1510Z-24-EC, 1510Z-24-EXC, 1510Z-24-XEBKC, 1510Z-24-XLEC, 1510Z-2-EC, 1510Z-2-EXC, 165527PJ, 181327PJ, 1D155, 1D156, 35-6482 35-6484 5U146, AGL10FL2S, B027, B037, B038, BN037, BN038, BN37, BN37, BN38, BN38, BO27, C1279, C1323, C1903, C48A03A24, C48A20A24, C48L2A18, C48L2A25, C48L2A29, C48L2A29A1, C48L2A31A1, C48L2A36, C48L2A40, C48L2A41C1, C48L2A41C1A1, CBS1102, CBS2102, F48AD32A01, M-194AG, MTG-C1279, S48A39A79, S48L2A10, S48L2A10A1, S48L2A10A2, S48L2A10A3, S48L2A10A5, S48L2A14, S48L2A14A1, S48L2A14A4, S48L2A27, S48L2A27A2, S48L2A27A3, S48L2A33A1, S48L2A39, S48L2A40A1, S48L2A40A2, S48L2A48, S48L2A48A1, S88-555, SP1510Z24XE, SP1510Z24XEBK, SP1510Z2KXB, SP1510Z2XB, SP1510Z2XE, SP1510Z2XEBK, SPL10FL2
** Not Available to ship to California **
View More Details
Price: $270.98
BN50V1 | 1-1/2HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN50V1
1-1⁄2~.25 Horse Power
3450/1725 RPM's
115 Volts
1 Service Factor
1.5 THP
16.4/4.4 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
17520, 41000, 165744, 177803, 177804, 181203, 181458, 184167, 186022, 186268, 186276, 187067, 190611, 193076, 193824, 196046, 90177044, 1D163, 1D165, AGL15FL2CS, BN50, BN60, C48A21A24, C48A47A79, C48AA70A01, C48B21A01, C48M2A16, C48M2A16A1, C48M2A16A2, C48M2A16A3, C48M2A16A4, C48M2A24, S48M2A3, SP1515Z24E, SP1515Z24EBK, SP1515Z2E, SPL15FL2S, TBS1152V1
** Not Available to ship to California **
View More Details
Price: $331.65
BN34V1 | 1-1/2HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN34V1
1-1⁄2~.18 Horse Power
3450/1725 RPM's
230 Volts
1 Service Factor
1.5 THP
6.5/2.5 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
17523, 41001, 165180, 176379, 177235, 177783, 177865, 181328, 181495, 182715, 182859, 184168, 186267, 90100448, 181328PJ, 1D164, 5U149, AGH15FL2CS, B034, BN034, C1280, C1326, C48B59A01, F48AD44A01, S48A40A79, S48B59A01, S48M2A10A1, S48M2A10A7, S48M2A7, SP1515Z2EBK3, SPH15FL2, BN34
** Not Available to ship to California **
View More Details
Price: $322.95
BN51 | 2HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN51
2~.25 Horse Power
3450/1725 RPM's
230 Volts
1 Service Factor
2 THP
10.5/2.6 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
17521, 181429, 182477, 182864, 182873, 184169, 186548, 187066,  17525, 1D166, C1327, SPH20FL2, SPH20FL2CS
** Not Available to ship to California **
View More Details
Price: $366.50
BN61 | 2HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN61
2~.25 Horse Power
3450/1725 RPM's
230 Volts
1 Service Factor
2 THP
8.5/2.8 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
17525, 182862, 182912, 184224, 186270, 186285, 186540, 196047, 5U150, C1327, SPH20FL2S
View More Details
Price: $383.24
BN62 | 3HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
In Stock
Details:
Century Motors Item Number BN62
3~.38 Horse Power
3450/1725 RPM's
230 Volts
1 Service Factor
3 THP
12.0/3.5 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
42005, 184821, 184833, 184894, 186300, C1504, SPH30FL2S
View More Details
Price: $422.76
BN63 | 4HP Above Ground 2 Speed Pool Pump Motor 48Y Frame
Currently Unavailable.
Details:
Century Motors Item Number BN63
4.0~.42 SPL Horse Power
3450/1725 RPM's
208-230 Volts
1 Service Factor
4 THP
12.0/3.5 Max Amperage
48Y Frame
Threaded Shaft
60 Hz

Suitable replacement for these motors:
193559, 42013
View More Details
Price: $431.45
I acknowledge this  is a special order item
